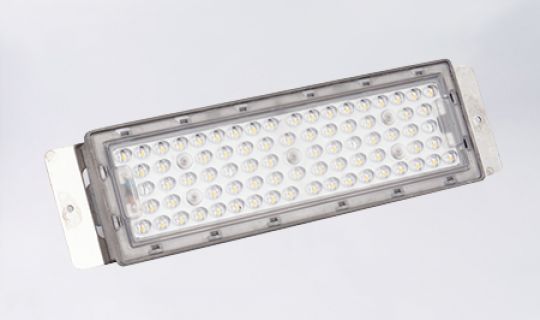

Product Description: • 5050 package LED lamp beads • Long life (light maintenance rate) • Human ergonomic light distribution, uniform road lighting • National standard interface, barrier-free upgrade and replacement • Easy maintenance, more convenient replacement • Strong weather resistance, adapt to various complex environments • High versatility, suitable for all kinds of lighting changes
Basic parameters:
Operating temperature: -40℃~+50℃
Storage temperature: -40℃~+50℃
Relative ambient humidity: 10%~90%RH
Typical value of pad temperature [11:60 ℃
Color temperature range: 4000K
Main material: main die-cast aluminum ADC12
Waterproof and dustproof class: IP67
Note: [1] Typical value of pad temperature is based on test results at ambient temperature of 25℃ (single module power 70W)
Electrical & Optical parameters:
| Type specification | Power (W) | Particle number | Driving current (mA) | Input voltage (Vdc) | Light efficiency (Im/W) | Luminous flux (lm) |
| LSKJ-CL5 | 40 | 36 | 560 | 72 | 140 | 5600 |
| LSKJ-CL5 | 50 | 36 | 694 | 72 | 150 | 7500 |
| LSKJ-CL5 | 60 | 36 | 857 | 72 | 150 | 9000 |
| LSKJ-CL5 | 70 | 36 | 972 | 72 | 140 | 9800 |
Product Code:
| Fixed name | Mounting interface | Lamp bead package | Origin of lamp beads | Particle number | Lens type | Show the color temperature | Wire rod |
| LSKJ | C:CSA port | L5：5050LED L3：3030LED | GC:Made in China | 36:36PCS | PC5：PC material Suitable for 5050 lamp type | 40: color temperature ≥4000K | C:CCCC |
