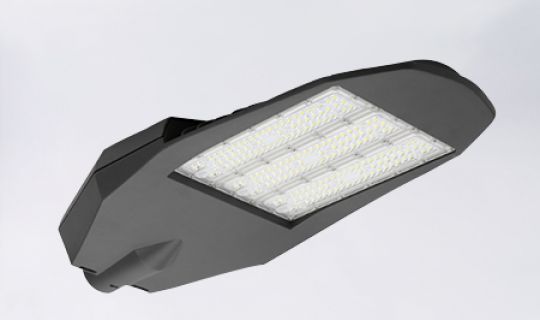

LS-E550A/B series
Back
Product Description: • Efficient lighting solutions • Wide color temperature range • Thermally optimized housing • Wide range of beam angles (optional) • Surge protection 4 to 6KV(+10 KV optional) • Side entry mount for 32 to 60mm/1" to 2" rods • Excellent efficiency: from 130 to 140Lm/W depending on the model • Wide operating temperature range • Free tool maintenance • IP 66 seal rating

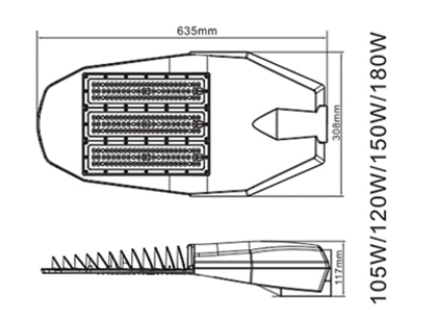

Size (MM)
| 产品型号 | LS-E550A/B series |
| LED type | 5050 |
| IK grade | IK08 |
| Rated power | 120W(30-200W) |
| Rated input voltage range | AC90-305V |
| Normal operating frequency | 50/60HZ |
| Power factor | >0.95 |
| Color temperature (k) | 4000 |
| Luminaire efficiency (Lm/w) | ≥140 |
| Color rendering index | ≥Ra70 |
| Service life | >50000h |
| Operating ambient temperature | -35℃-+50℃ |
| Working ambient humidity | 10%-90% |
| Class of protection | IP66 |
| Protection level against electric shock | Class l |
| Installation height | 6-8m |
