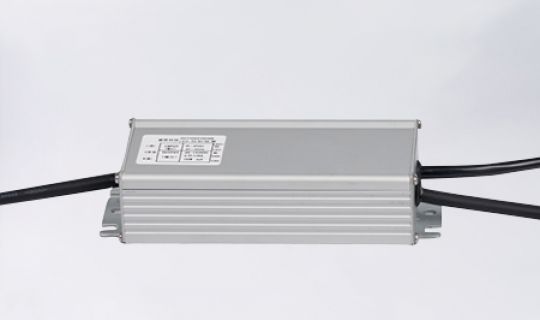

OCF series LED drive power supply
Back
Product Description: • Constant current mode output • Metal shell grounding design • Built-in active PFC function • IP65 protection grade, indoor and outdoor installation can be • Dimming function: 0-10VDC or 10V PWM dimming (adjust the output power percentage), the dimming device will be fully loaded output; • Protection function: overvoltage protection, undervoltage protection, open circuit protection, short circuit protection, overheat protection.
| Product model | OCF75O105WS | OCF100O105WS | |
| exportation | Rated current | 1050mA | 1050mA |
| Rated power | 75W | 100W | |
| Output voltage range | 36V-107V | 48V-143V | |
| Current adjustment range | 0-10VDC dimming or 10V PWM dimming | ||
| Ripple current | 105-1050mA | 105-1050mA | |
| Current accuracy | Max. 5.0%@ rated current | ||
| Start-up time | +5.0% | ||
| Voltage range | 0.5~1S | ||
input | Frequency range | 90~305VAC | |
| Power factor | 47~63HZ | ||
| Total harmonic distortion | Fully loaded 120VAC 0.99220V 0.96 | ||
| Efficiency (Typ) | THD<20%(@ load >=50%/120VC,220VAC; @ Load >=75%/277VAC) | ||
| Alternating current (TyP) | 87% | 90% | |
| Leakage current | 0.18A/120VAC | 1.0A/120VAC | |
| Idle/standby power consumption | 0.43A/220VAC | 0.54A/220VAC | |
| short-circuit | <0.7mA 240VAC/60HZ | ||
| overvoltage | Idle active power consumption <1W Standby active power consumption <1W | ||
Protection | Operating temperature | Self-recovery mode. Short circuit, no damage to the product. The short circuit is removed and can be automatically restored | |
| Maximum enclosure temperature | The output voltage will be limited to a specified range | ||
environment | Working humidity | Tcase=-30~+60°C | |
| Store temperature and humidity | Tcase=+90°C | ||
| 20-95% RH, non-condensing | |||
| -30 ~+60℃,10-95% RH | |||
| Temperature coefficient | +0.03%/℃(0-60℃) | ||
| other | dimension | 135*61.5*36.5 | |
| remark | 1. Unless otherwise specified, all specifications are measured at rated current of 220VAC and ambient temperature of 25℃. | ||
