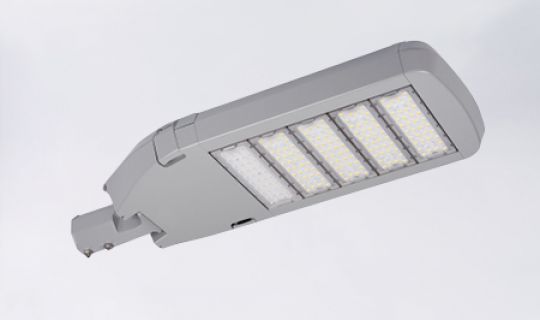

LS-D500A/B series
Back
LS-D500A/B series of silver gray LED road lighting uses the original high-power LED from internationally famous manufacturers as a light emitting device, with a unique design of asymmetric optical distribution lens for secondary optical processing, high conversion efficiency and long life design of power supply. It has many advantages such as ultra-high light efficiency, uniform road brightness, good color rendering, long service life (50000H), low maintenance cost, energy saving and environmental protection.

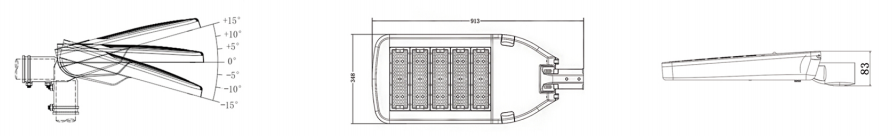

Size drawing (MM)
| Product model | LS-D500A/B series |
LED type | 5050 |
| LED quantity | 180pcs |
| Rated power | 300W(80-300w) |
| Rated input voltage range | 220v~/50Hz |
| Normal operating frequency | 220-240V~ |
| Power supply efficiency | 90% or higher |
| Power factor | > 0.95 |
| Color temperature (k) | 4000 |
| Luminaire efficiency (Lm/w) | P 140 |
| Color rendering index | ≥Ra70 |
| Service life | >50000h, light decay is less than 30% |
| Operating ambient temperature | - 20 ℃ to + 50 ℃ |
| Working ambient humidity | 10% - 95% |
| Class of protection | IP66 |
| Protection level against electric shock | Class l |
| Erection pipe | 60mm |
| Installation height | 6-8m |
| Light distribution mode | Asymmetric optical matching lens head |
| Lamp body material | Die cast aluminum alloy, surface electrostatic spraying treatment |
| Road surface material | Cement, asphalt and other pavement |
| Have a wide way | ≥ 12m (single side mounting) |
| Maximum mounting pipe diameter | Ф 76 mm |
